Raytool Head for Fiber Laser cutting Machine Modular design with easy maintenance. Dual water cooling circuits. Auto focus to reduce human intervention and improve piercing and cutting efficiency. 3 Cover...
Rs. 140,700.00
Description

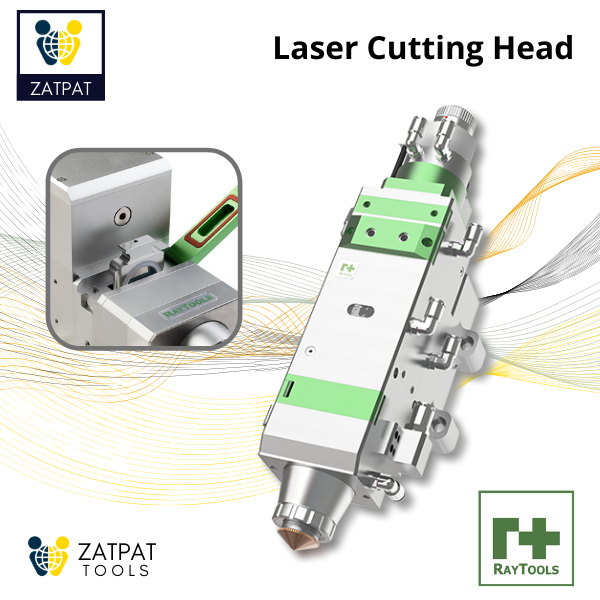

Raytool Head for Fiber Laser cutting Machine
Modular design with easy maintenance.
-
Dual water cooling circuits.
-
Auto focus to reduce human intervention and improve piercing and cutting efficiency.
-
3 Cover glasses (top, middle and bottom) to protect collimation & focus lens.
-
IP65 class dustproof, patented cover glass cover plate. All-around dust prevention.
| Fiber Interface | QBH , QD |
| Clear Aperture | 26mm |
| Auto Focus | |
| - Range | +8 ~ -9mm |
| - Acceleration | ≤ 10m/s² |
| - Velocity | ≤ 6m/min |
| - Accuracy | ≤ 50μm |
| Cover Glasses | |
| - Collimation Side (Top) | Φ24.9*1.5mm |
| - Focusing Side (Bottom/Middle) | Φ27.9*4.1mm |
| Collimation Length | 100mm |
| Focus Length | 125mm,150mm |
| Nozzle Styles | Single , Double , Custom |
| Diameter of Nozzle Tip | |
| 0.8mm, 1.0mm, 1.2mm, 1.5mm, 2.0mm, 2.5mm, | |
| 3.0mm, 3.5mm, 4.0mm, 4.5mm, 5.0mm | |
| Assist Gas Pressure | ≤ 25 bar |
| Weight | ~ 3 kg |
